Description

Smart big ceiling fan for factory refers to a smart large-size ceiling fan used in large spaces such as factories. It has an intelligent control system and a large fan diameter (e.g., a diameter of 7 meters or more). It is mainly used to promote air circulation in a large area and has the characteristics of energy saving, low noise, and long life. The fan blades are mostly made of aluminum alloy. Through aerodynamic design, they can provide large air volume at a lower speed, thereby covering a wider area and reducing energy consumption. Intelligent functions include remote control, scheduled operation, automatic speed regulation, environmental linkage, etc., and can be connected to the industrial Internet of Things platform for centralized management. This type of fan mainly serves places with high space and obvious air stagnation, such as manufacturing workshops, logistics warehouses, and exhibition halls, and is used to improve air circulation efficiency and temperature and humidity control capabilities.

Model	Size	Motor Power KW	Fan Rotation Range RPM	Max Air Volume M3/Min	Effective coverage area Air speed≥1M/S	Rated Voltage V	Fan Weight KG	Noise Level	Energy Consumption KW·H
Aloeplus7.3	7.3	1.5	10-58	13850	1100	380V/3.3A	127	42	1.5
Aloeplus6.1	6.1	1.5	10-60	12500	1000	380V/2.5A	112	42	1.5

Advantages:

Permanent magnet synchronous motor drive system
This product uses a permanent magnet synchronous motor (PMSM) as the driving core, with a motor efficiency of up to 81.5%, which is significantly higher than the traditional asynchronous motor and gearbox drive system. The motor is equipped with NdFeB48SHT magnetic steel (temperature resistance 170℃) and ESSEX® brand enameled wire (temperature resistance 200℃), which has excellent thermal stability and long-term operation reliability. The power consumption of the whole machine under the maximum wind speed condition is only 1.5kWh, no lubricating oil is required, there is no gear transmission loss, and it is completely maintenance-free. It is suitable for high-frequency and long-term operation industrial environments.

Fluid power optimization design
The fan blades are made of 6063-T6 magnesium-aluminum alloy material, which has good strength and fatigue resistance. The cross-section of the fan blades is a streamlined propeller structure, which optimizes the airflow path, reduces wind resistance, and improves air delivery efficiency. The air volume ranges from 6950 to 13850 cubic meters per minute, depending on the model configuration; under the condition of wind speed ≥1m/s, the effective air supply coverage area can reach 1100 square meters. The speed range is 10–100 RPM, and low speed can achieve a wide range of soft air supply, which helps the internal air circulation of the factory, reduces heat accumulation, and improves the comfort of the working environment.

High-strength structural design

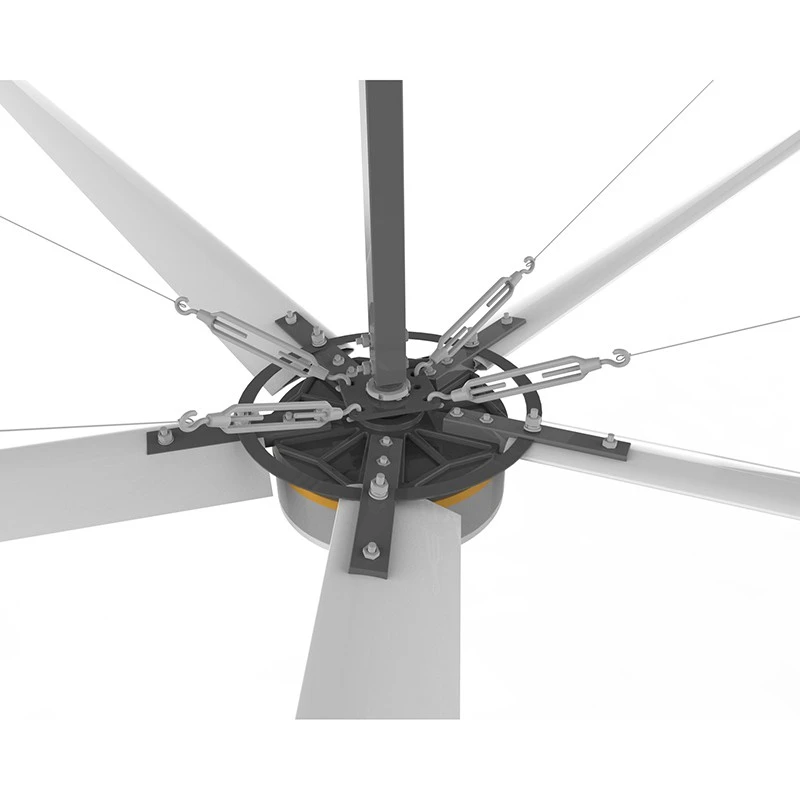

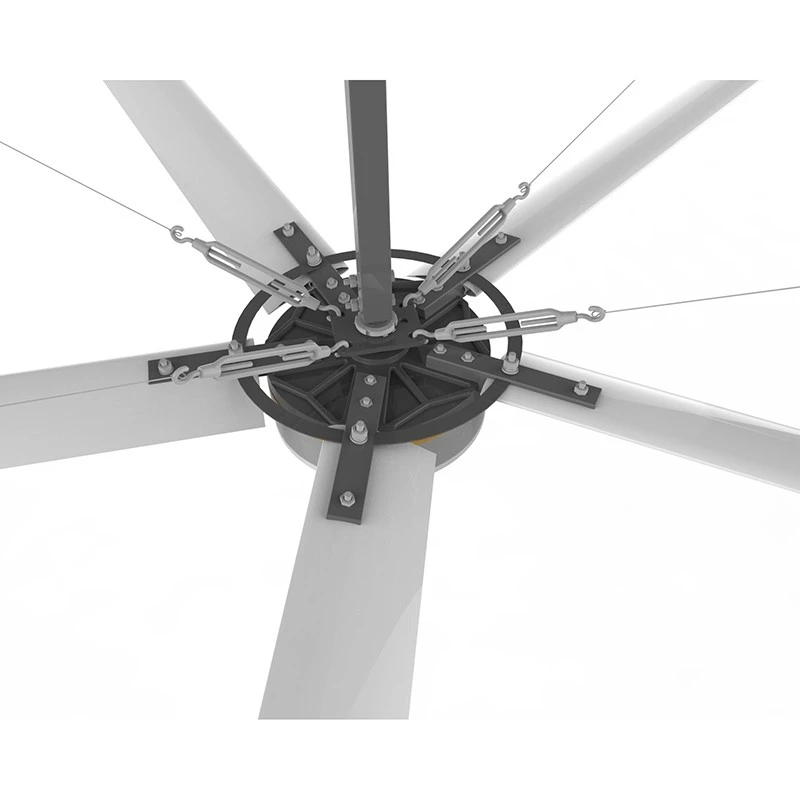

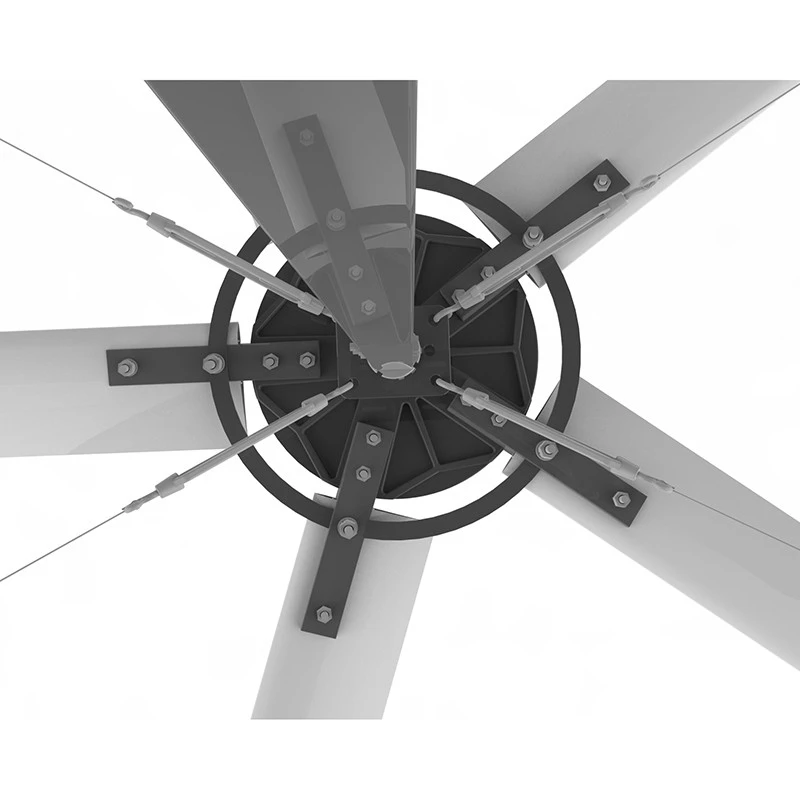

The whole machine structure reinforcement design covers the fan body, connection parts and safety clamps. The thickness of a single fan blade is 2mm and the width is 180mm. It is equipped with a double reinforcement rib structure to effectively disperse the stress load during rotation and avoid material fatigue caused by long-term operation. The fan blade connector uses 45# steel material with a thickness of 15mm, a connection length of 15cm, and a force-bearing area of 195 square centimeters, which can effectively disperse the force and reduce the wear of the connection point. The external double-sided reinforced clamp structure can prevent the nut from damaging the fan blade during installation, while improving the safety level of the overall structure and ensuring the mechanical stability of the equipment under long-term operation.

Industrial-grade intelligent control system
Equipped with an integrated variable frequency control system with an IP55 protection level, it is suitable for use in industrial environments with dust, moisture and other influencing factors. The controller supports basic functions such as start, stop, stepless speed regulation, status indication, etc., and has multiple electrical safety protection mechanisms such as overload protection, phase loss protection, voltage surge suppression, etc. to ensure stable operation of the equipment. The system supports 220V and 380V voltage access and is compatible with a variety of industrial power grids. At the same time, it can be equipped with BMS building management system or THI third-party control interface to realize centralized joint control and remote management of multiple fans to meet the operation needs of intelligent factories.

Technical Parameter

Model	Size M	Motor Power KW	Fan Rotation Range RPM	Max Air Volume M3/Min	Effective coverage area Air speed≥1M/S	Rated Voltage V	Rated Current A	Fan Weight KG	Noise Level	Energy Consumption KW·H
Aloepro7.3	7.3	1.5	10-60	13650	1000	380/220	3.4	113	40	1.45
Aloepro6.1	6.1	0.8	10-65	11500	900	380/220	2.9	100	40	0.75
Aloepro5.5	5.5	0.8	10-70	10500	800	380/220	2.8	82	40	0.7
Aloepro4.9	4.9	0.8	10-80	9800	700	380/220	2.7	80	40	0.7
Aloepro4.2	4.2	0.4	10-90	8900	550	380/220	2	69	40	0.4
Aloepro3.8	3.8	0.4	10-95	7900	450	380/220	2	67	40	0.4
Aloepro3.3	3.3	0.4	10-100	6950	400	380/220	2	64	40	0.35
Aloepro2.5	2.5	0.3	10-120	4950	300	220	2	53	40	0.3

FAQ

Q: Can your company package according to customers' requirements?

A: Yes, you only need to provide the packaging design and we will produce it according to your requirements. We also have professional designers who can help you with packaging design.

Q: Do you offer testing and auditing services?

A: Yes, each of our motors is tested before shipment, and a dedicated person will review the shipment report.

Q: If I want to make the product with other special materials, can you do it?

A: Of course, you just need to provide us with the design drawings or samples, the R&D department will estimate whether we can do it, and we will give you a satisfactory answer.

Q: What are your advantages compared with your competitors?

A: (1) R&D capability: The best R&D team in the industry. The company has 3 invention patents (mass products), 12 utility model patents and 2 appearance patents;

(2) The core component of the fan is the motor. The motor is developed, produced and tested by ourselves. We are the real source factory;

(3) We have a physical factory, welcome to come for inspection;

(4) The core material of the motor: enameled wire (C-level insulation, temperature resistance up to 200 degrees) and magnetic steel NdFeB48SHT (temperature resistance up to 170 degrees), the best materials in the industry, ensuring stable and reliable quality;
