Product introduction

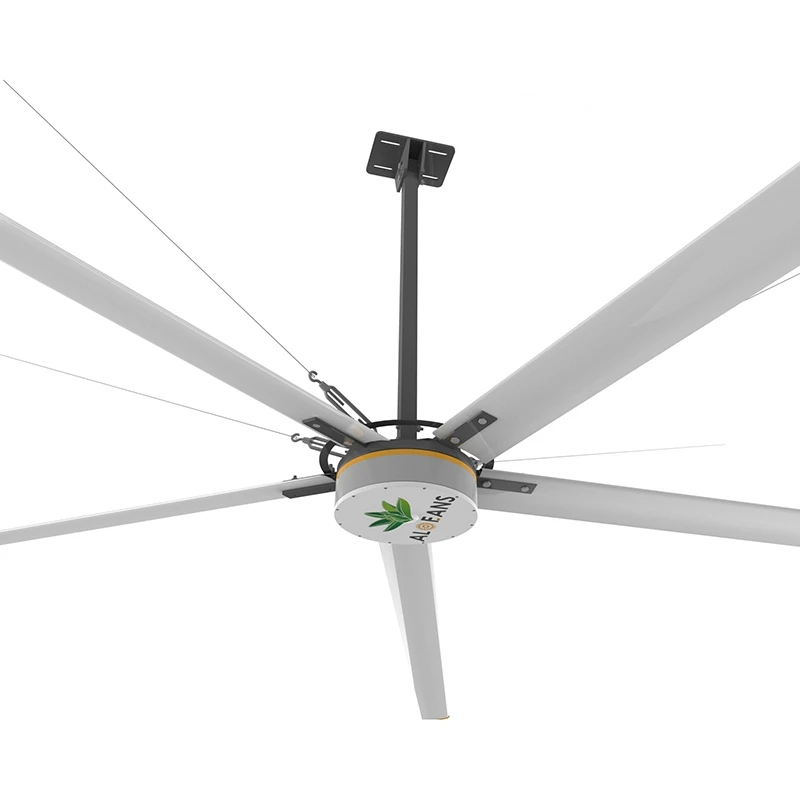

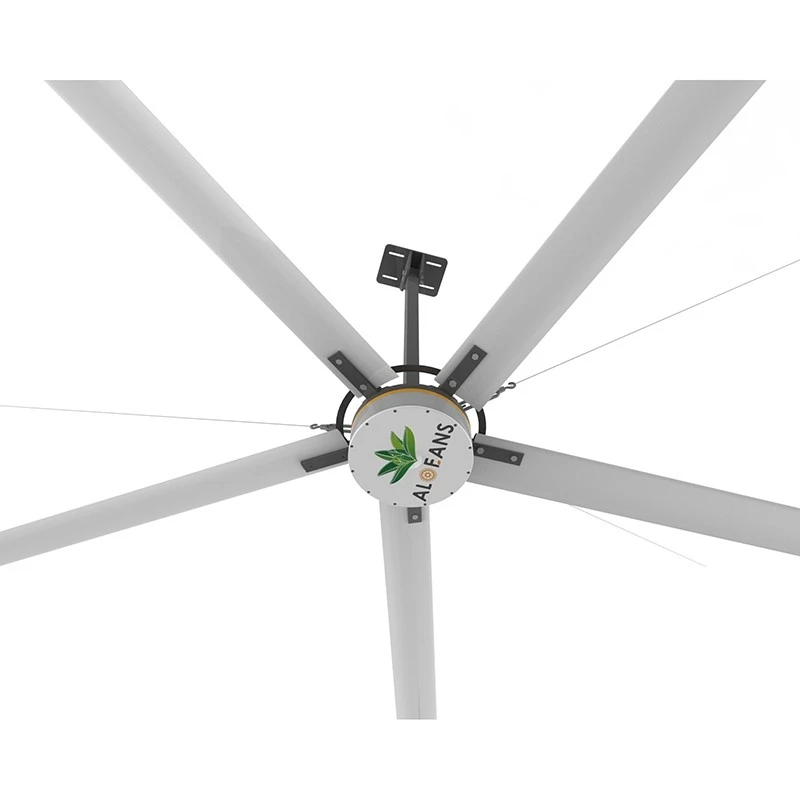

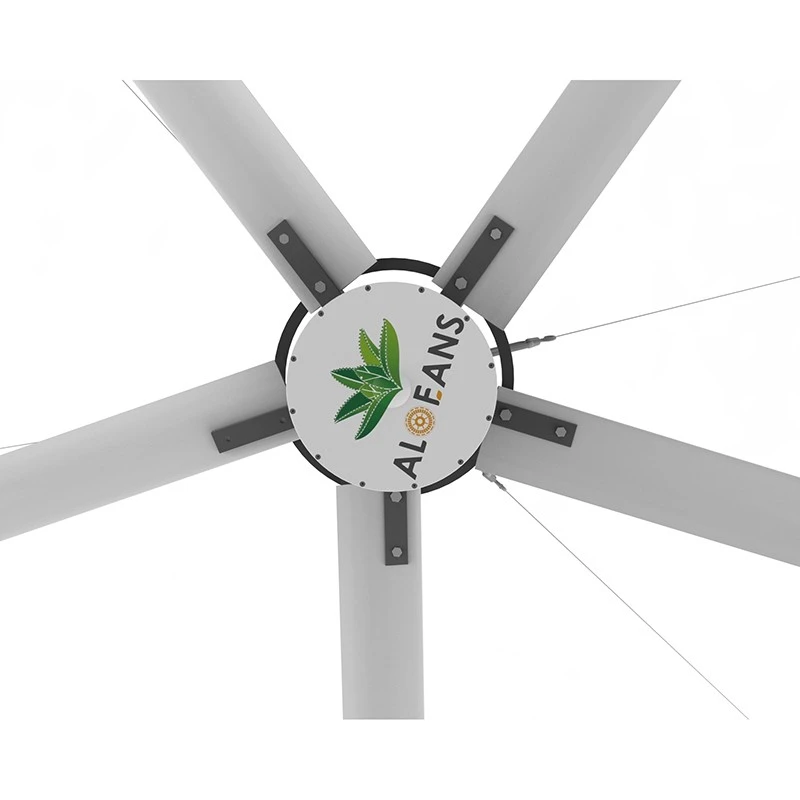

A big outdoor ceiling fan for high ceilings is a hanging fan with a diameter between 2.5 meters and 7.3 meters. It runs at a low speed to push a large amount of air to form a three-dimensional circulating airflow to achieve cooling and ventilation effects. It is mainly used in large open or semi-open spaces, such as courtyards, terraces, pavilions, warehouses, workshops, restaurant outdoor areas, farm buildings and other places.
Product features
Energy Saving
Our big outdoor ceiling fans for high ceilings use high-efficiency direct drive motors with a motor efficiency of up to 85%, far exceeding the industry average of 70-75%. This means that it can produce strong airflow with lower energy consumption. Compared with traditional HVAC systems, our ceiling fans can save up to 30% of energy consumption.
Large Coverage
A single big outdoor ceiling fan for high ceilings can reach a diameter of up to 7 meters and an effective coverage area of up to 1,000 square meters, far exceeding the 200-300 square meters of ordinary industrial fans. Large coverage means that users can achieve the same ventilation effect with fewer ceiling fans, thereby reducing initial installation costs and long-term maintenance costs.
Quiet Operation
Our big outdoor ceiling fan for high ceilings adopts a direct drive gearless design, eliminating the noise of gear friction. At the highest speed, its noise level is only 45 decibels, which is equivalent to the ambient noise of an ordinary office. This is much lower than the 60-70 decibel noise level common in similar products. This means that it can run continuously without disturbing the normal work of employees or users to take a rest in the cool air.
Technical parameters
|
Model |
Size |
Motor Power |
Fan Rotation Range |
Max Air Volume |
Effective coverage area |
Rated Voltage |
Fan Weight |
Noise Level |
Energy Consumption |
|
Aloeplus7.3 |
7.3 |
1.5 |
10-58 |
13850 |
1100 |
380V/3.3A |
127 |
42 |
1.5 |
|
Aloeplus6.1 |
6.1 |
1.5 |
10-60 |
12500 |
1000 |
380V/2.5A |
112 |
42 |
1.5 |
|
Model |
Size |
Motor Power |
Fan Rotation Range |
Max Air Volume |
Effective coverage area |
Rated Voltage |
Rated Current |
Fan Weight |
Noise Level |
Energy Consumption |
|
Aloepro7.3 |
7.3 |
1.5 |
10-60 |
13650 |
1000 |
380/220 |
3.4 |
113 |
40 |
1.45 |
|
Aloepro6.1 |
6.1 |
0.8 |
10-65 |
11500 |
900 |
380/220 |
2.9 |
100 |
40 |
0.75 |
|
Aloepro5.5 |
5.5 |
0.8 |
10-70 |
10500 |
800 |
380/220 |
2.8 |
82 |
40 |
0.7 |
|
Aloepro4.9 |
4.9 |
0.8 |
10-80 |
9800 |
700 |
380/220 |
2.7 |
80 |
40 |
0.7 |
|
Aloepro4.2 |
4.2 |
0.4 |
10-90 |
8900 |
550 |
380/220 |
2 |
69 |
40 |
0.4 |
|
Aloepro3.8 |
3.8 |
0.4 |
10-95 |
7900 |
450 |
380/220 |
2 |
67 |
40 |
0.4 |
|
Aloepro3.3 |
3.3 |
0.4 |
10-100 |
6950 |
400 |
380/220 |
2 |
64 |
40 |
0.35 |
|
Aloepro2.5 |
2.5 |
0.3 |
10-120 |
4950 |
300 |
220 |
2 |
53 |
40 |
0.3 |
Product components

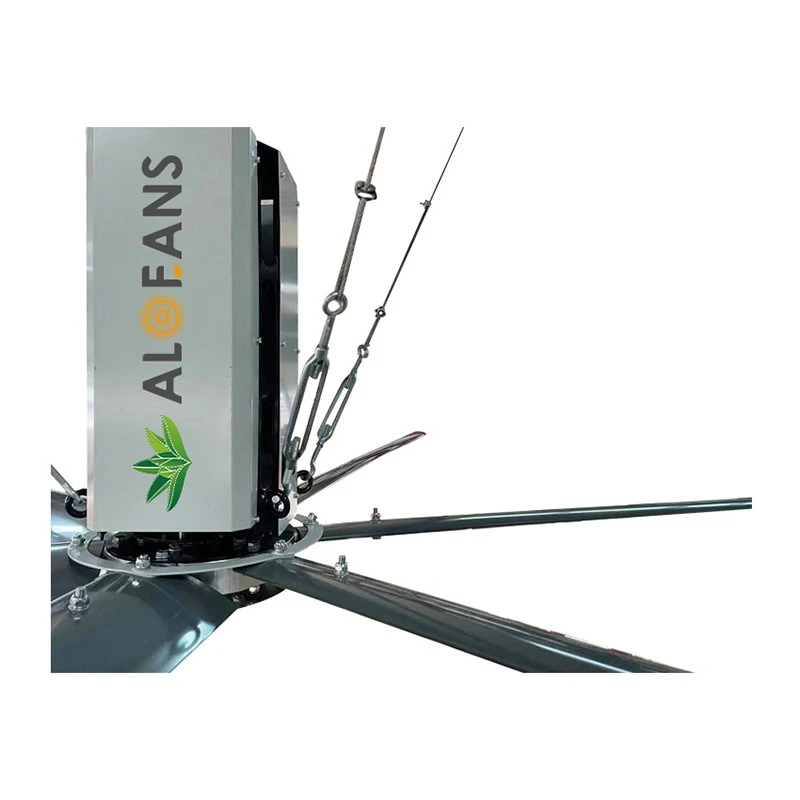

PMSM Motor
The HVLS fan is directly driven by a domestically manufactured Permanent Magnet Synchronous Motor (PMSM), eliminating the need for a gearbox.
No transmission lubricant is required, making the motor maintenance-free, with an efficiency of up to 81.5%.
It features a protection rating of IP55, offering both energy efficiency and reliability, with a service life exceeding 10 years.
The motor weighs 42.5 kilograms and consumes only 1.5 kilowatt-hours per hour at maximum wind speed.
Frequency Conversion Speed Controller
The integrated control inverter features an IP55 protection rating and is equipped with start/stop buttons, a stepless speed adjustment knob, and indicator lights.
It provides comprehensive protection functions, including overload protection, voltage surge protection, and phase loss protection.
Customized controller configurations can be provided according to customer requirements.
Fan Blades
Constructed from 6063-T6 magnesium-aluminum alloy, the blades offer high strength and durability.
The blade cross-section adopts a propeller-like aerodynamic profile, delivering low wind resistance and high energy efficiency.
Each blade features a 2 mm thick, dual-rib, over-reinforced structure with a width of 180 mm, effectively preventing blade fatigue and fracture.

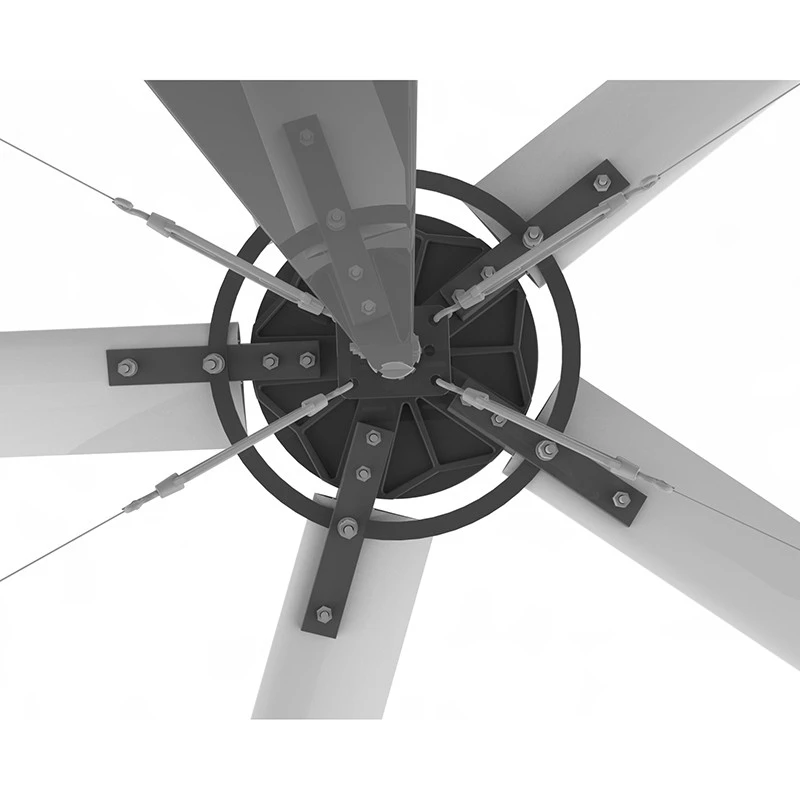

Fan Blade Connector
Made of No. 45 steel with a thickness of 15 mm, the plug-in connector fully engages with the reinforced section of the fan blade.
The connection length reaches 15 cm, with a stress-bearing area of 195 cm², which helps disperse mechanical stress and minimize wear on the blades caused by the connector, thereby ensuring operational safety.

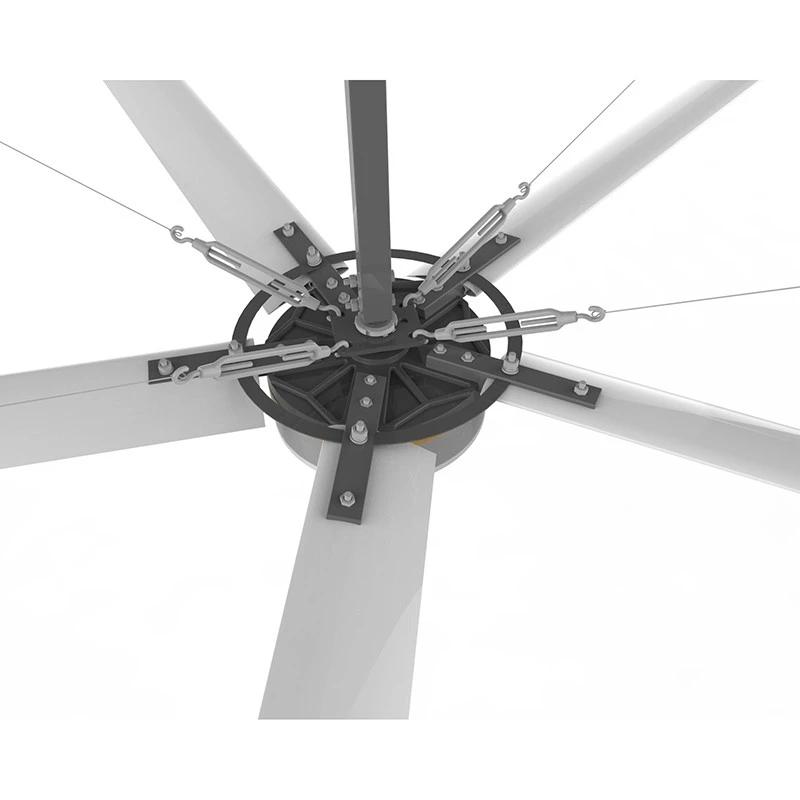

External Reinforced Clamp
The dual-sided external clamp-type blade reinforcement structure enhances overall safety by preventing installation errors.
It avoids potential structural damage caused by improper tightening of nuts, thereby eliminating safety hazards during installation and operation.
FAQ
Q: What kind of shipping methods can you provide?
A: We can provide sea transportation, air transportation and express delivery.
Q: How is your after-sales service?
A: Our quality warranty period is three years. Any quality problems will be solved, so that you have no worries.
Q: Are your products exported?
A: Yes, they have been exported to Spain, the Netherlands, Germany, France, Italy, the United States, Mexico, Brazil, Iraq, the United Arab Emirates, Saudi Arabia, Egypt, Nigeria, South Africa, Iran, Vietnam, Indonesia, Singapore, India, Thailand, Pakistan, Malaysia, the Philippines, Singapore, Hong Kong, Taiwan...
Q: If I go to your company, can I know where the nearest airport is?
A: First of all, Shanghai Pudong or Hongqiao Airport, let us know your schedule, and we will have someone to pick you up at the airport.
Q: How many square meters is your factory?
A: More than 3,300 square meters.
Q: How many workers are there in your factory?
A: 45 workers.
Q: What production machines do you have in your factory?
A: Winding machines for producing motor stators, 3D coordinates for testing parts, etc.
Q: Do you have a quality inspection department?
A: Yes, we have 3 quality inspectors
Q: What is the turnover in 2024?
A: About 4.5 million US dollars.
