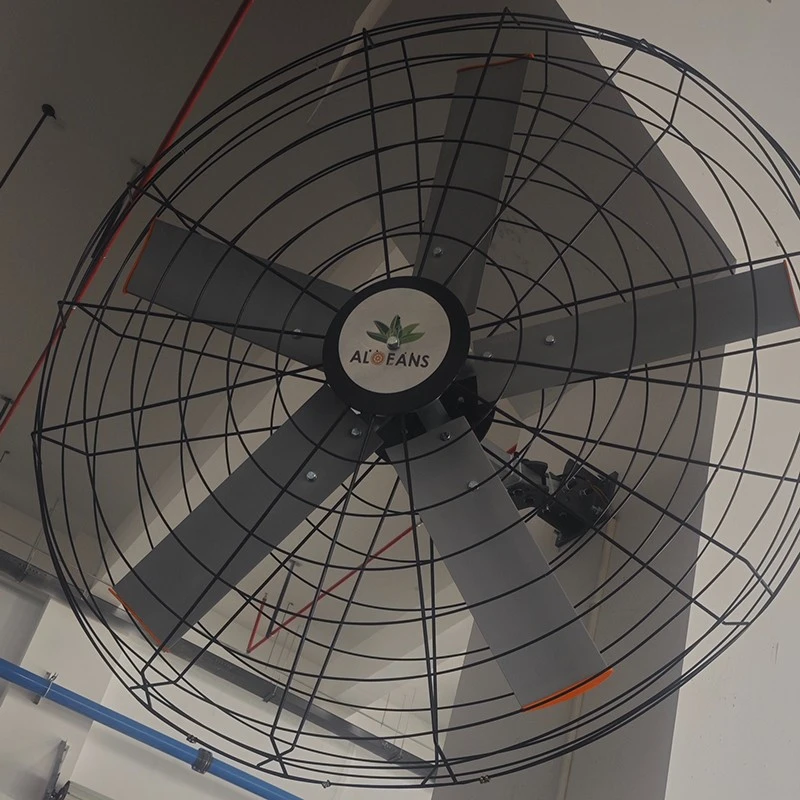

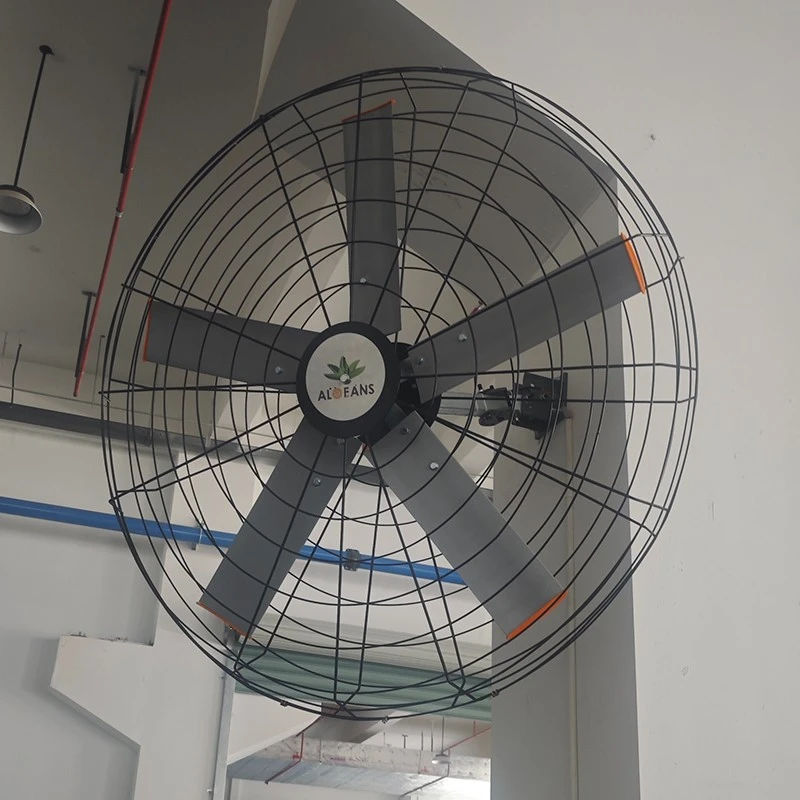

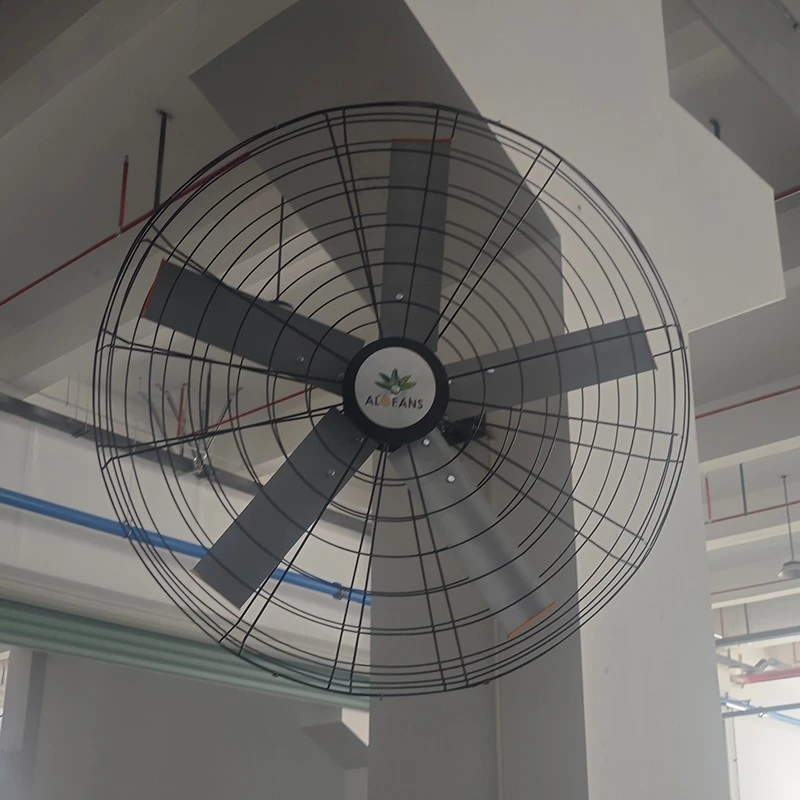

Livestock Wall Fans

Livestock wall fans are a type of fixed wall ventilation equipment designed for livestock and poultry farms. They are mainly used to improve air circulation in the breeding environment, reduce temperature, control humidity, and improve the health of livestock and poultry.

Efficient Heat Dissipation
The maximum air volume of the Aloesmart 2.0 model livestock wall fan is up to 5600 m³/h, and the Aloesmart 1.6 model also reaches 5200 m³/h, which is much higher than most similar fans on the market (usually the air volume is in the range of 4000–4800 m³/h). This enables our products to quickly dissipate the heat and humid air inside the livestock house, creating a more comfortable and hygienic growth environment for livestock and poultry.

Low-noise
By optimizing the blade angle, our livestock wall fan noise level is controlled below 65 decibels, which is 15-20% lower than traditional fans. What's more, the specially designed shock-absorbing motor seat can effectively absorb operating vibrations and further reduce noise. The low-noise design not only creates a quiet environment for the livestock house, but also reduces animal stress reactions and improves their health.

Energy Saving
Our livestock wall fans use high-efficiency permanent magnet synchronous motors with an energy efficiency rating of IE4, which is 15-20% more efficient than ordinary asynchronous motors. At the same air volume, power consumption can be reduced by 30-40%. Based on an annual use of 8 months, our fans can save 600-800 kWh of electricity per unit compared to traditional fans, significantly reducing operating costs for farmers.

PMSM Motor
The HVLS fan is directly driven by a domestically manufactured Permanent Magnet Synchronous Motor (PMSM), eliminating the need for a gearbox.
No transmission lubricant is required, making the motor maintenance-free, with an efficiency of up to 81.5%.
It features a protection rating of IP55, offering both energy efficiency and reliability, with a service life exceeding 10 years.
The motor weighs 42.5 kilograms and consumes only 1.5 kilowatt-hours per hour at maximum wind speed.

Frequency Conversion Speed Controller
The integrated control inverter features an IP55 protection rating and is equipped with start/stop buttons, a stepless speed adjustment knob, and indicator lights.
It provides comprehensive protection functions, including overload protection, voltage surge protection, and phase loss protection.
Customized controller configurations can be provided according to customer requirements.


Fan Blades
Constructed from 6063-T6 magnesium-aluminum alloy, the blades offer high strength and durability.
The blade cross-section adopts a propeller-like aerodynamic profile, delivering low wind resistance and high energy efficiency.
Each blade features a 2 mm thick, dual-rib, over-reinforced structure with a width of 180 mm, effectively preventing blade fatigue and fracture.

Fan Blade Connector
Made of No. 45 steel with a thickness of 15 mm, the plug-in connector fully engages with the reinforced section of the fan blade.
The connection length reaches 15 cm, with a stress-bearing area of 195 cm², which helps disperse mechanical stress and minimize wear on the blades caused by the connector, thereby ensuring operational safety.

External Reinforced Clamp
The dual-sided external clamp-type blade reinforcement structure enhances overall safety by preventing installation errors.
It avoids potential structural damage caused by improper tightening of nuts, thereby eliminating safety hazards during installation and operation.
