introduction

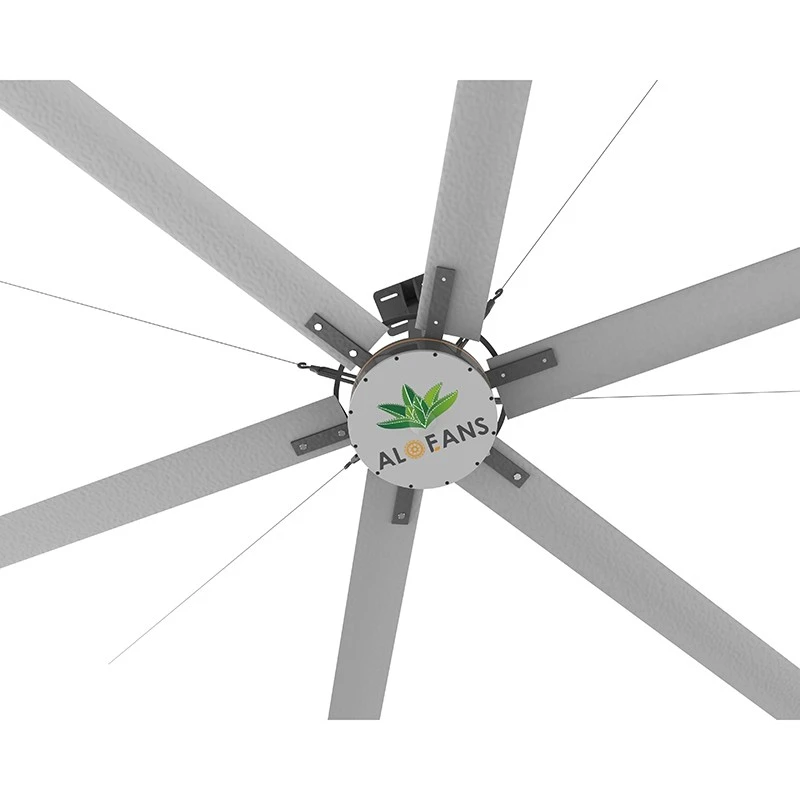

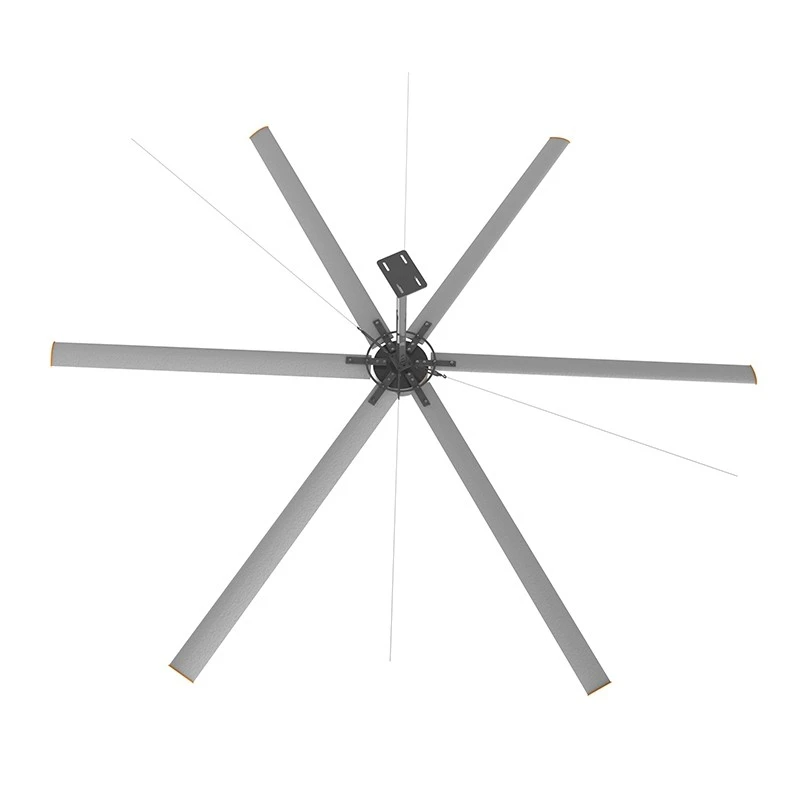

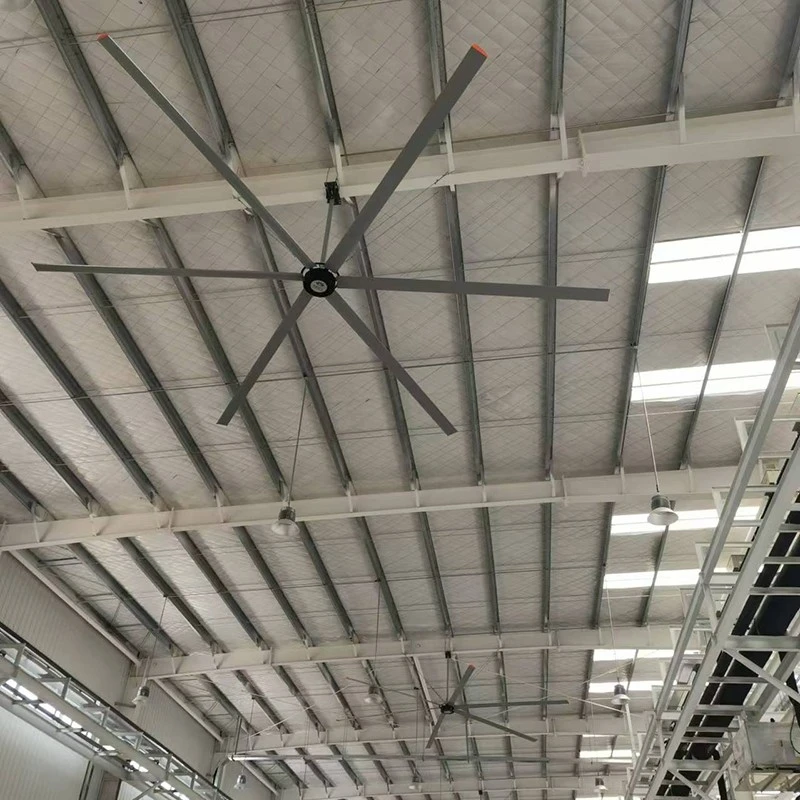

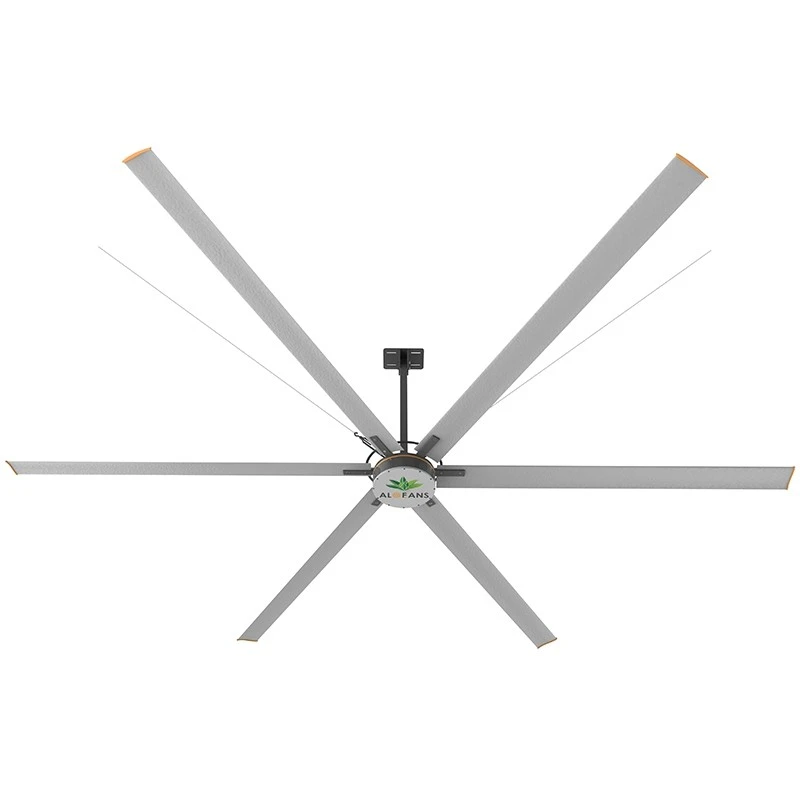

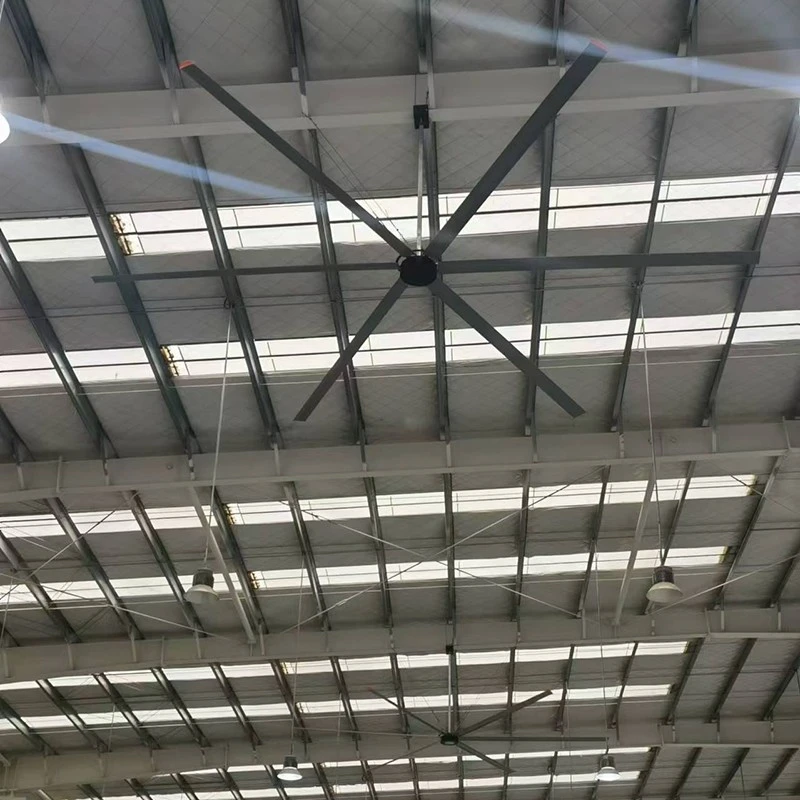

Showroom Fans are highly efficient ventilation and cooling equipment designed for large indoor spaces such as exhibition halls, trade fairs, and shopping malls. They achieve large-scale, soft and long-lasting air circulation through slow rotation of large-diameter blades (common in HVLS fans).

Model	Size M	Motor Power KW	Fan Rotation Range RPM	Max Air Volume M3/Min	Effective coverage area Air speed≥1M/S	Rated Voltage V	Rated Current A	Fan Weight KG	Noise Level	Energy Consumption KW·H
Aloemax7.3	7.3	1.5	10-58	13850	1100	380/220	3.4	120	40	1.5
Aloemax6.1	6.1	0.8	10-60	12000	1000	380/220	2.9	102	40	0.8
Aloemax5.5	5.5	0.8	10-65	11000	850	380/220	2.8	85	40	0.75
Aloemax4.9	4.9	0.8	10-70	10000	700	380/220	2.7	80	40	0.75
Aloemax4.2	4.2	0.4	10-75	9000	550	380/220	2.0	68	40	0.4
Aloemax3.8	3.8	0.4	10-85	8000	450	380/220	2.0	65	40	0.4
Aloemax3.3	3.3	0.4	10-95	7000	400	380/220	2.0	60	40	0.35
Aloemax2.5	2.5	0.3	10-100	5000	300	220	2.0	55	40	0.3

advantages

1. PMSM permanent magnet synchronous motor
The energy conversion efficiency of PMSM permanent magnet synchronous motor can reach more than 90%, effectively reducing energy consumption and improving operation economy. At the same time, the motor has low vibration and low noise during operation, which is suitable for exhibition hall spaces with high requirements for environmental quietness. In addition, PMSM motor has compact structure, good heat dissipation effect, long service life, and can meet the needs of long-term and stable operation.

2. Variable frequency speed controller
The fan adopts variable frequency speed control system, which can automatically or manually adjust the wind speed according to the actual use environment, so as to achieve more accurate air circulation and temperature control, improve comfort and further save energy. The controller has a built-in soft start function, which can gradually increase the speed at startup, effectively reduce the current shock, and extend the overall service life of the equipment.

3. Aviation grade aluminum alloy fan blades
The fan blades are made of high-strength aviation grade aluminum alloy material, which has both lightweight and structural strength. It is not easy to deform during operation, ensuring stable and reliable operation of the fan. The shape of the blades is optimized according to the principles of fluid mechanics, which can ensure the air volume while making the air flow distribution more uniform and soft, improving the air circulation effect and human comfort of the entire space.

4. Fan blade connector
As a key part of the fan structure, the blade connector is manufactured using a high-strength forging process. It has high overall precision and sufficient strength. It can firmly connect the blade to the motor shaft to ensure that it does not loosen during operation. In addition, the connector is equipped with multiple fixing devices such as limit pins and locking bolts to form an effective safety redundant structure to further ensure the safety of equipment operation.

5. External reinforcement clamp
The external reinforcement clamp is used to fix and support the motor and the main shaft, and plays a role in structural reinforcement. During the operation of the fan, this component can effectively prevent loosening caused by vibration or torque, and improve the overall operating stability of the equipment. Its design fully considers the functional requirements of anti-seismic and anti-torsion, and can play a supporting and protective role in the face of complex operating conditions.
