introduction

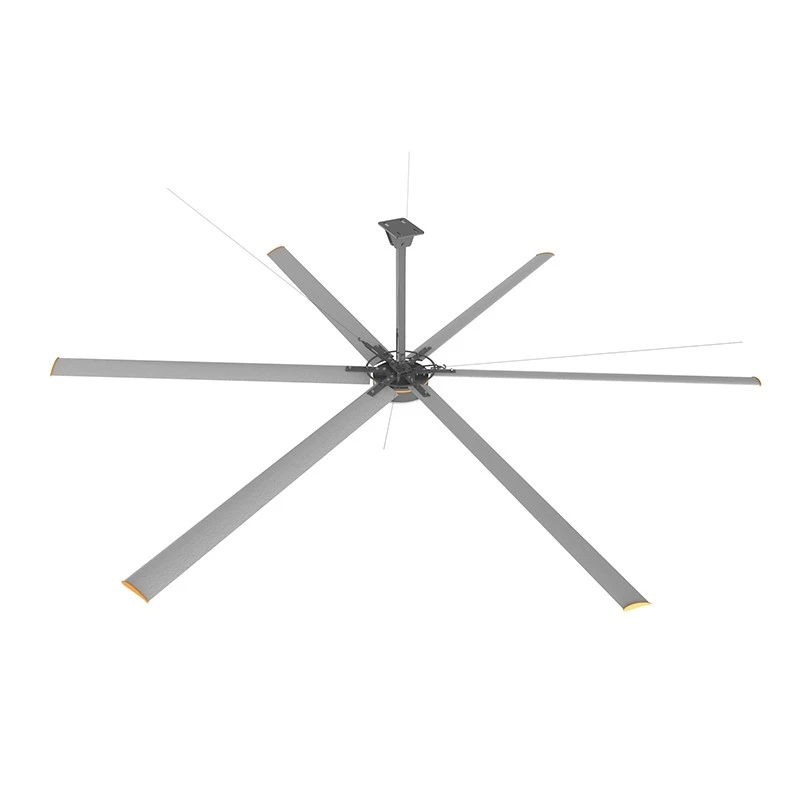

Huge Commercial Ceiling Fans are large ceiling fans with diameters usually between 2.5 meters and 7.3 meters, designed for ventilation and cooling of large areas. They run at low speeds, without generating strong wind sensations, to promote large amounts of air circulation, creating a continuous, soft, and natural wind sensation, achieving cooling and ventilation effects.
|
Model |
Size |
Motor Power |
Fan Rotation Range |
Max Air Volume |
Effective coverage area |
Rated Voltage |
Rated Current |
Fan Weight |
Noise Level |
Energy Consumption |
|
Aloemax7.3 |
7.3 |
1.5 |
10-58 |
13850 |
1100 |
380/220 |
3.4 |
120 |
40 |
1.5 |
|
Aloemax6.1 |
6.1 |
0.8 |
10-60 |
12000 |
1000 |
380/220 |
2.9 |
102 |
40 |
0.8 |
|
Aloemax5.5 |
5.5 |
0.8 |
10-65 |
11000 |
850 |
380/220 |
2.8 |
85 |
40 |
0.75 |
|
Aloemax4.9 |
4.9 |
0.8 |
10-70 |
10000 |
700 |
380/220 |
2.7 |
80 |
40 |
0.75 |
|
Aloemax4.2 |
4.2 |
0.4 |
10-75 |
9000 |
550 |
380/220 |
2.0 |
68 |
40 |
0.4 |
|
Aloemax3.8 |
3.8 |
0.4 |
10-85 |
8000 |
450 |
380/220 |
2.0 |
65 |
40 |
0.4 |
|
Aloemax3.3 |
3.3 |
0.4 |
10-95 |
7000 |
400 |
380/220 |
2.0 |
60 |
40 |
0.35 |
|
Aloemax2.5 |
2.5 |
0.3 |
10-100 |
5000 |
300 |
220 |
2.0 |
55 |
40 |
0.3 |
|
Model |
Size |
Motor Power |
Fan Rotation Range |
Max Air Volume |
Effective coverage area |
Rated Voltage |
Rated Current |
Fan Weight |
Noise Level |
Energy Consumption |
|
Aloepro7.3 |
7.3 |
1.5 |
10-60 |
13650 |
1000 |
380/220 |
3.4 |
113 |
40 |
1.45 |
|
Aloepro6.1 |
6.1 |
0.8 |
10-65 |
11500 |
900 |
380/220 |
2.9 |
100 |
40 |
0.75 |
|
Aloepro5.5 |
5.5 |
0.8 |
10-70 |
10500 |
800 |
380/220 |
2.8 |
82 |
40 |
0.7 |
|
Aloepro4.9 |
4.9 |
0.8 |
10-80 |
9800 |
700 |
380/220 |
2.7 |
80 |
40 |
0.7 |
|
Aloepro4.2 |
4.2 |
0.4 |
10-90 |
8900 |
550 |
380/220 |
2 |
69 |
40 |
0.4 |
|
Aloepro3.8 |
3.8 |
0.4 |
10-95 |
7900 |
450 |
380/220 |
2 |
67 |
40 |
0.4 |
|
Aloepro3.3 |
3.3 |
0.4 |
10-100 |
6950 |
400 |
380/220 |
2 |
64 |
40 |
0.35 |
|
Aloepro2.5 |
2.5 |
0.3 |
10-120 |
4950 |
300 |
220 |
2 |
53 |
40 |
0.3 |
advantages
1. High efficiency and energy saving
Large commercial ceiling fans use domestic high-performance PMSM permanent magnet synchronous motors to directly drive the fans, without the need for gearboxes and lubricants, effectively reducing energy loss. The motor efficiency is as high as 81.5%, and it consumes only 1.5 kWh per hour at maximum wind speed, which is much lower than the energy consumption of traditional industrial fans.
2. Maintenance-free design
PMSM motors have an IP55 protection level, a stable structure, and do not require daily maintenance during operation, greatly reducing the maintenance cost of long-term use. The core components are all made of high-strength and durable materials. For example, the blade connector uses 15mm thick 45 steel. The overall structure has been carefully designed to ensure that the product life exceeds 10 years, making it a reliable long-term investment.
3. Safety structure

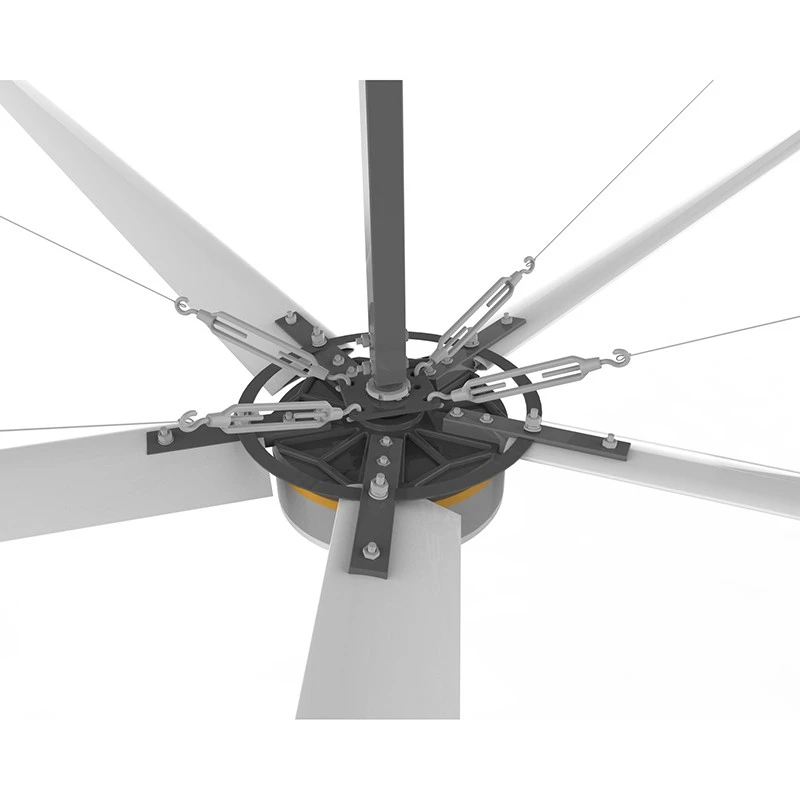

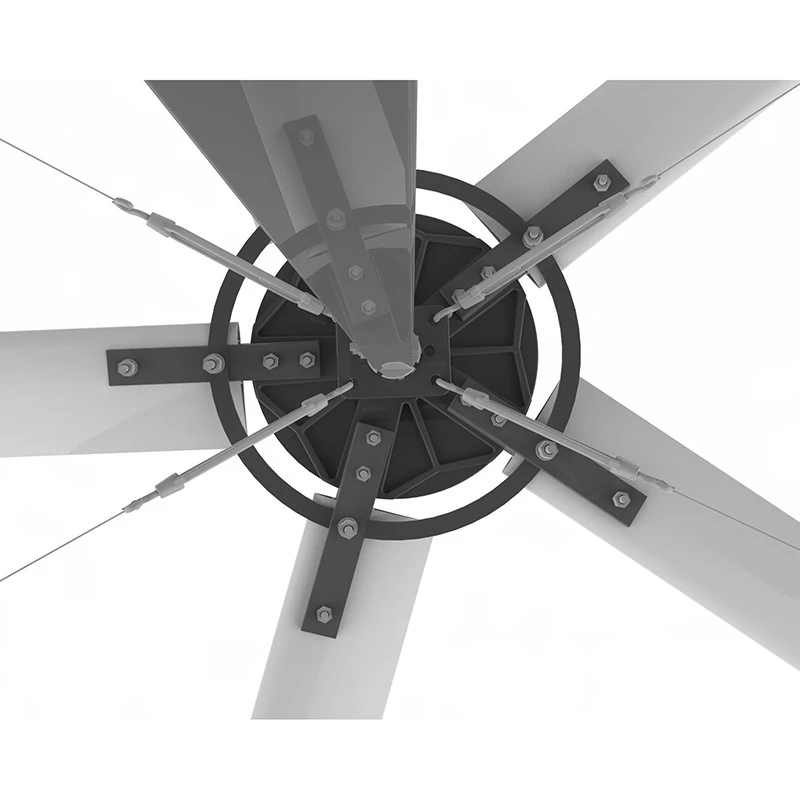

The fan is designed with full consideration of operational safety. The blade connector contacts the fan blade reinforcement ribs over a large area, effectively dispersing stress and avoiding safety problems caused by wear. The double-sided external reinforcement clamp structure not only ensures a firm connection, but also prevents damage to the nut caused by improper installation, greatly improving the safety of use, and is suitable for industrial sites with extremely high safety standards.
4. Intelligent control
Equipped with an integrated variable frequency speed controller, it supports stepless speed regulation and is simple and intuitive to operate. The control system has start, stop, speed adjustment buttons and indicator lights, and built-in multiple protection mechanisms such as overload, phase loss, and voltage shock to ensure that the ceiling fan can operate stably and safely under various working conditions.
5. Powerful air supply
The fan blades are made of 6063-T6 magnesium-aluminum alloy, which is sturdy and durable. The streamlined cross-section design of the propeller is combined with two reinforcing rib structures to ensure that the fan can maintain stable air supply at high speeds. The blade width is 180mm and the thickness is 2mm, which can greatly improve the air circulation efficiency. It is widely used in large factories, warehouses, supermarkets and other places with ventilation and cooling requirements to improve overall comfort and air quality.
