introduction

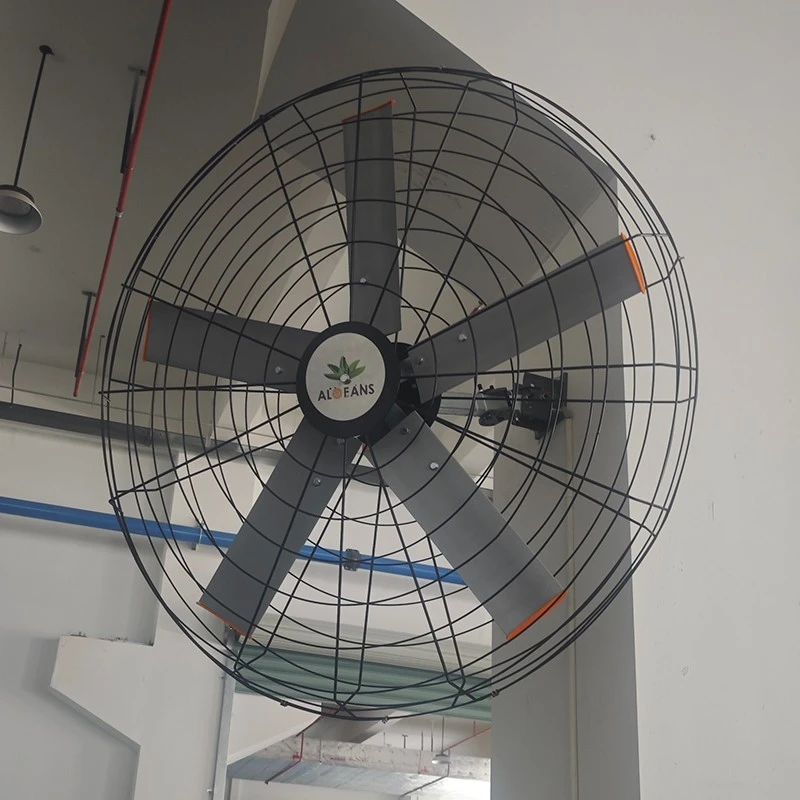

Wall-mounted industrial air circulation fans are a type of ventilation equipment designed for industrial and large commercial venues. They combine large air volumes, high efficiency, and space savings. Through strong and long-distance air flow transmission, the equipment can effectively improve air quality and temperature control.
|
Model |
Size |
Motor Power |
Max Rotation Range |
Max Air Volume |
Max. Blow Distance |
Voltage |
Fan Weight |
Noise Level |
Energy Consumption |
|
Aloesmart2.0 |
2 |
400W |
130 |
5600 |
0-38m(Wind speed 7m/s-1.5m/s) |
220V/2A |
135 |
40 |
0.4 |
|
Aloesmart1.6 |
1.6 |
400W |
130 |
5200 |
0-36m(Wind speed 7m/s-1.5m/s) |
220V/2A |
130 |
40 |
0.4 |
feature
Space saving
Wall-mounted industrial air circulation fans can be directly installed on the wall or roof, without occupying ground space, freeing up more operating area, especially suitable for space-constrained scenes such as factories and warehouses, effectively improving site utilization.
Large air volume
The fan blades adopt a propeller-style streamlined profile design, with low wind resistance and strong thrust. Combined with the optimized power output of 130 RPM, the maximum air volume of wall-mounted industrial air circulation fans reaches 5600 m³/h, and the air supply distance can reach more than 30 meters.
Energy saving
Equipped with a 0.4KW PMSM permanent magnet synchronous motor, wall-mounted industrial air circulation fans have both high torque and low energy consumption characteristics, with a power consumption of only 0.4kWh per hour, and energy efficiency performance is better than traditional AC motors, suitable for industrial scenes with strict requirements on energy consumption.
Quiet operation
Wall-mounted industrial air circulation fans control the noise source through air duct structure optimization and low-speed drive, and the noise during operation is less than 40 decibels. Under continuous high air volume output, it will not interfere with normal communication or work of personnel and is suitable for industrial production or public spaces that require a quiet environment.
Sturdy structure
The fan blades are high-strength magnesium-aluminum alloy material,and fixed by a 15mm thick No. 45 steel connector, with a connection length of 15cm and a force area of up to 195cm², which greatly reduces local stress concentration and prevents structural fatigue damage.
Intelligent frequency conversion control
Built-in IP55-rated frequency conversion controller, wall-mounted industrial air circulation fans support multiple safety functions such as step-less speed regulation, soft start, and stop, overload protection, voltage shock protection, etc. The control panel is equipped with a status indicator light, start and stop button, and speed knob, which can flexibly adjust the wind speed and operation mode according to the actual scene, and can also provide customized control solutions.
